The perfect solution for precise light measurement in lighting design, architecture, film & photography, or wherever you need it.


Those who plan lighting shape atmosphere, orientation, and emotion. The LIGHTmetric® ONE provides standards-compliant photometry and high-precision spectral data – reliable, reproducible, and practical. Whether it's an architectural project, a film set, or a lighting design commission: with the LIGHTmetric ONE, professionals receive robust measurements for perfect planning, consistent results, and maximum quality.

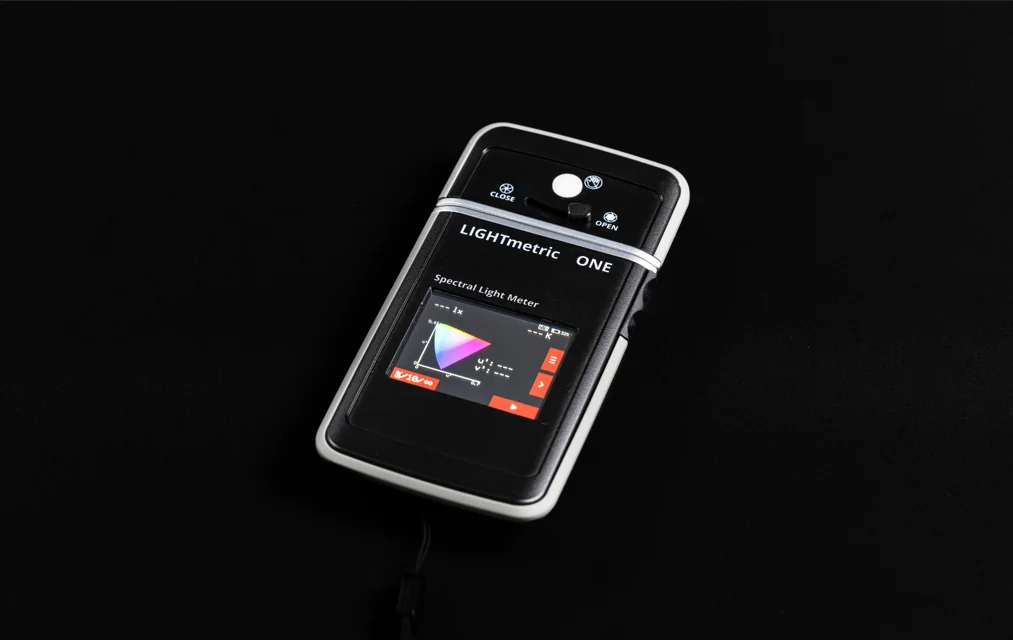

LIGHTmetric® ONE spectral Lux Meter

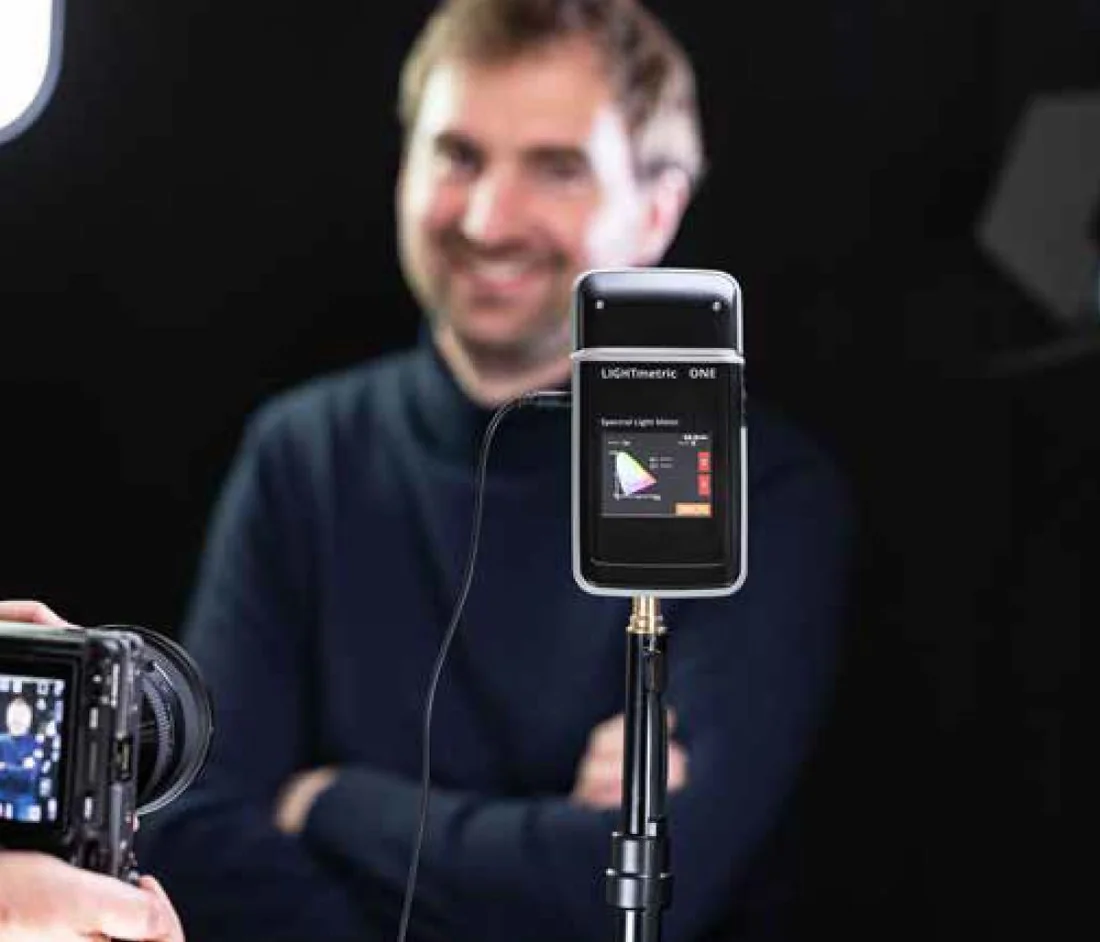

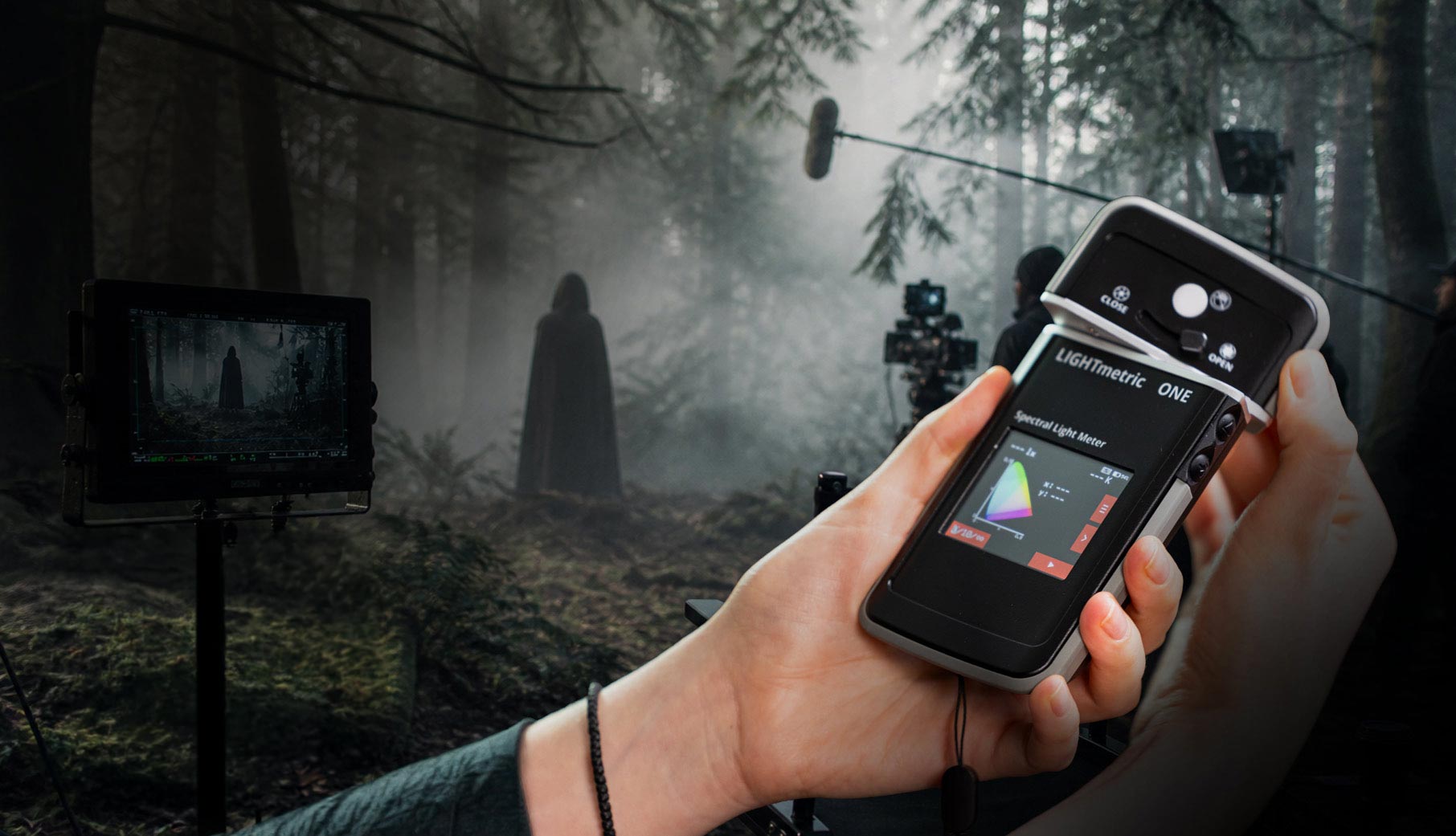

The LIGHTmetric® ONE was developed together with filmmakers and photographers - to meet the demands of the industry. High-quality work requires high-quality equipment when it comes to spectral measurement of light.

Smart Solution

SMART Solution

Compact and handy -
easy to use.
The LIGHTmetric® ONE is the smart companion
on set. Ready for use at
any time and always precise.

Best Purpose

BEST Purpose

Users from the film and television
industry were actively involved in the
development of the device.
This ensures that the device is optimally
adapted to the particular needs of individual users.

Low Cost

High QUALITY, attractive DESIGN and
COST-EFFICIENT

The attractive price
of the measuring device
belies the high-quality design
of the light measurement technology.

Connectivity

Compact, handy and intuitive to use! The LIGHTmetric® ONE is the smart companion on set. Using the iOS and Android app (Bluetooth), remote control and data handling is child's play.

Sophisticated design at an attractive price

When developing the LIGHTmetric® ONE, the focus was on functionality, perfection and an attractive price. We also pass these attributes on to our customers. Our ISO 17025 traceable calibrations testify to our striving to always offer you the best possible measurement technology.

All necessary measurements and evaluations

The device has all the necessary measurement variables (CCT, Lux, spectrum, CRI, ...) as well as other evaluations such as SSI (Spectral Similarity Index), Lee filter calculation for color shifts (CCT), etc.

Features ideal for architects, lighting designers and installers

The LIGHTmetric One also impresses with many functions ideal for architects, lighting designers and technicians, and many more. The features such as the rotatable measuring head and tripod mount are just as advantageous as the versatile control via app. Human centric lighting evaluations, as required by the WELL Building standard for example, are supported by the direct display of melanopic equivalent daylight illuminance.

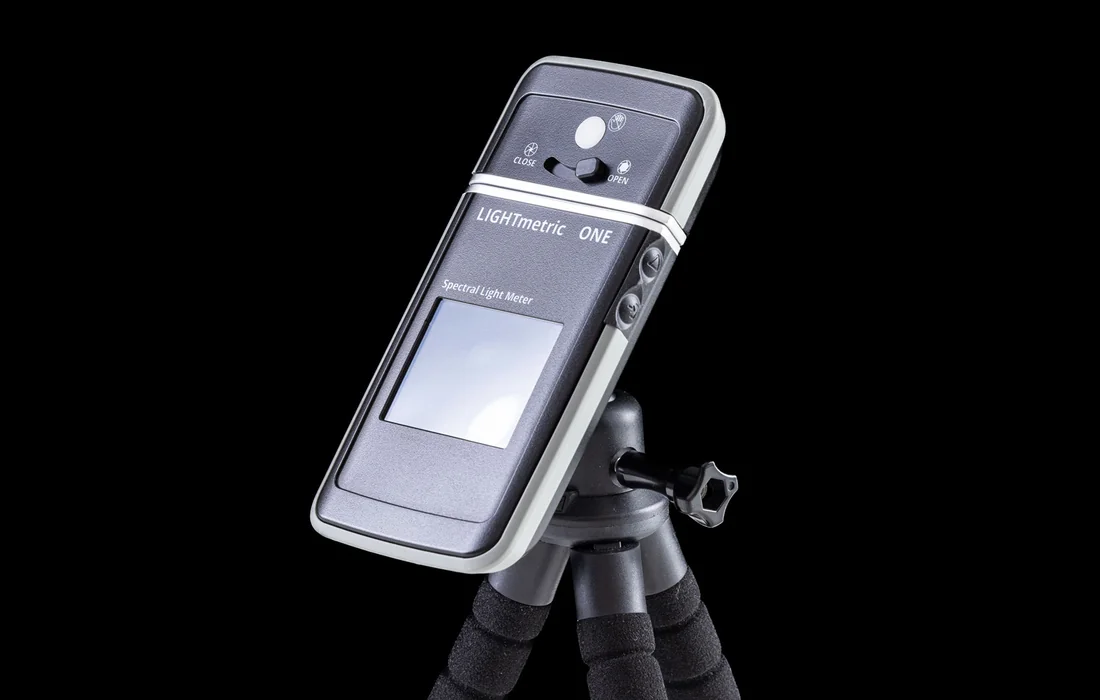

Measurement of artificial plant lighting

Thanks to its extensive evaluation functions for PAR and other special functions, the LIGHTmetric® One is also ideal for evaluating artificial plant lighting.

SPECIFICATIONS

Wavelength Range        (360 - 830) nm

Measuring Range          (1 - 350000) lx

Optical Bandwidth        10 nm with CIE 214 Correction

Entrance Optics             10 mm diameter cosine diffuser

App      Compatible for Android and iOS

Usability            intuitive measuring device with touchscreen or via app

more Features Rotatable sensor head, Tripod mount, Flash-Sync

x, y Reproducibility       ± 0,0002

Δx, Δy Uncertainty        ± 0,002 (standard illuminant A)

CCT-Measuring Range  (1700 - 17000) K

ΔCCT     ± 50 K (standard illuminant A)

Interface           USB 2.0, Bluetooth

Temperature Range Operation +10° C to +30° C

Charging Device             via + 5 V USB

Battery Life       At least 8 hours of operation

Dimensions       136 mm x 74 mm x 32 mm

LIGHTmetric ONE at a glance

Compact and handy - easy to use. The LIGHTmetric ONE is the smart companion. Ready for use at any time and extremely precise.

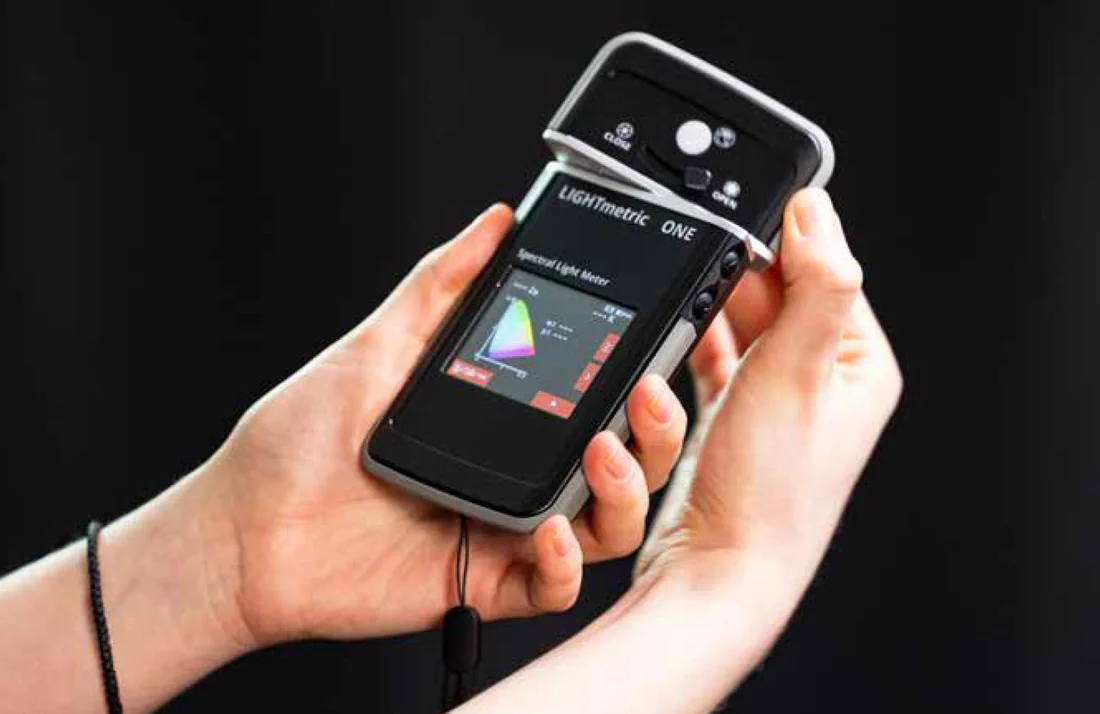

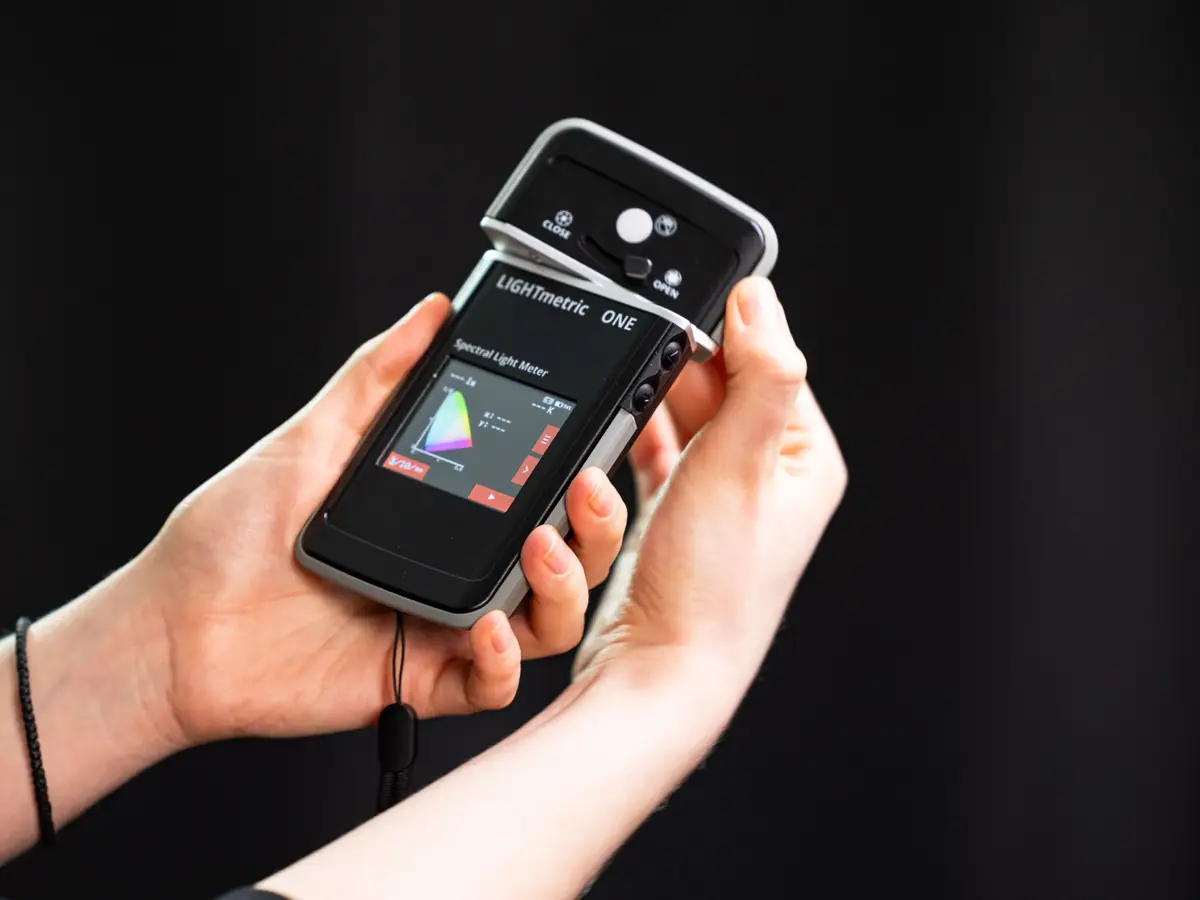

Rotatable measuring sensor

Using the rotating sensor, the measuring device can always be oriented perfectly and easily.

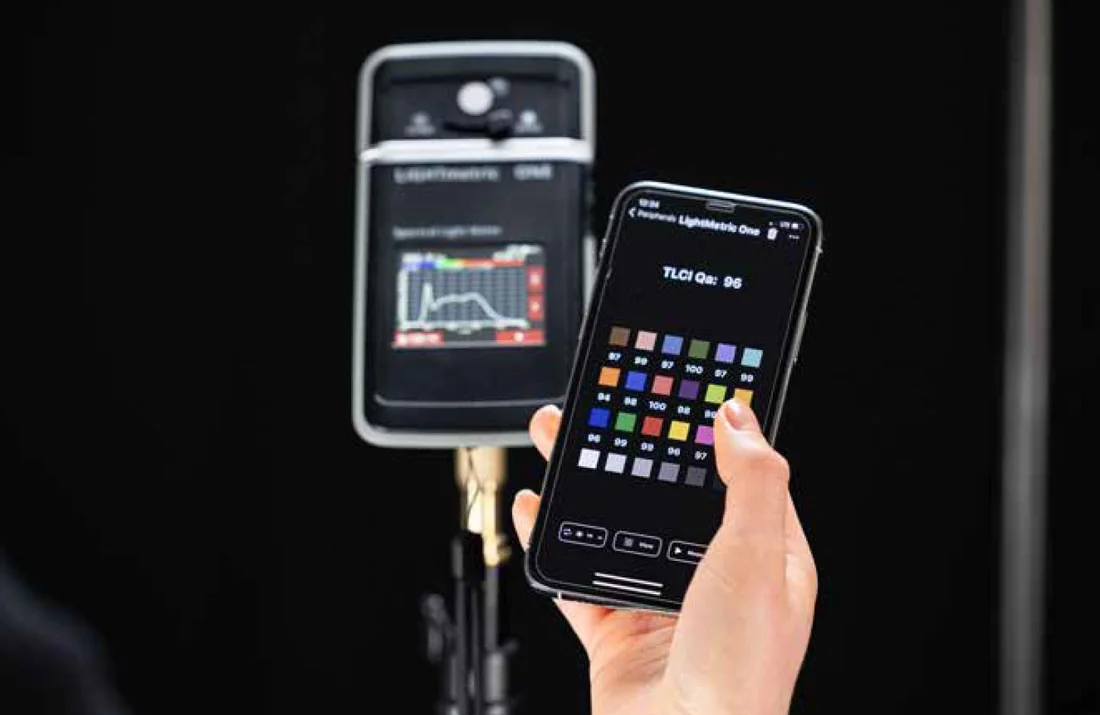

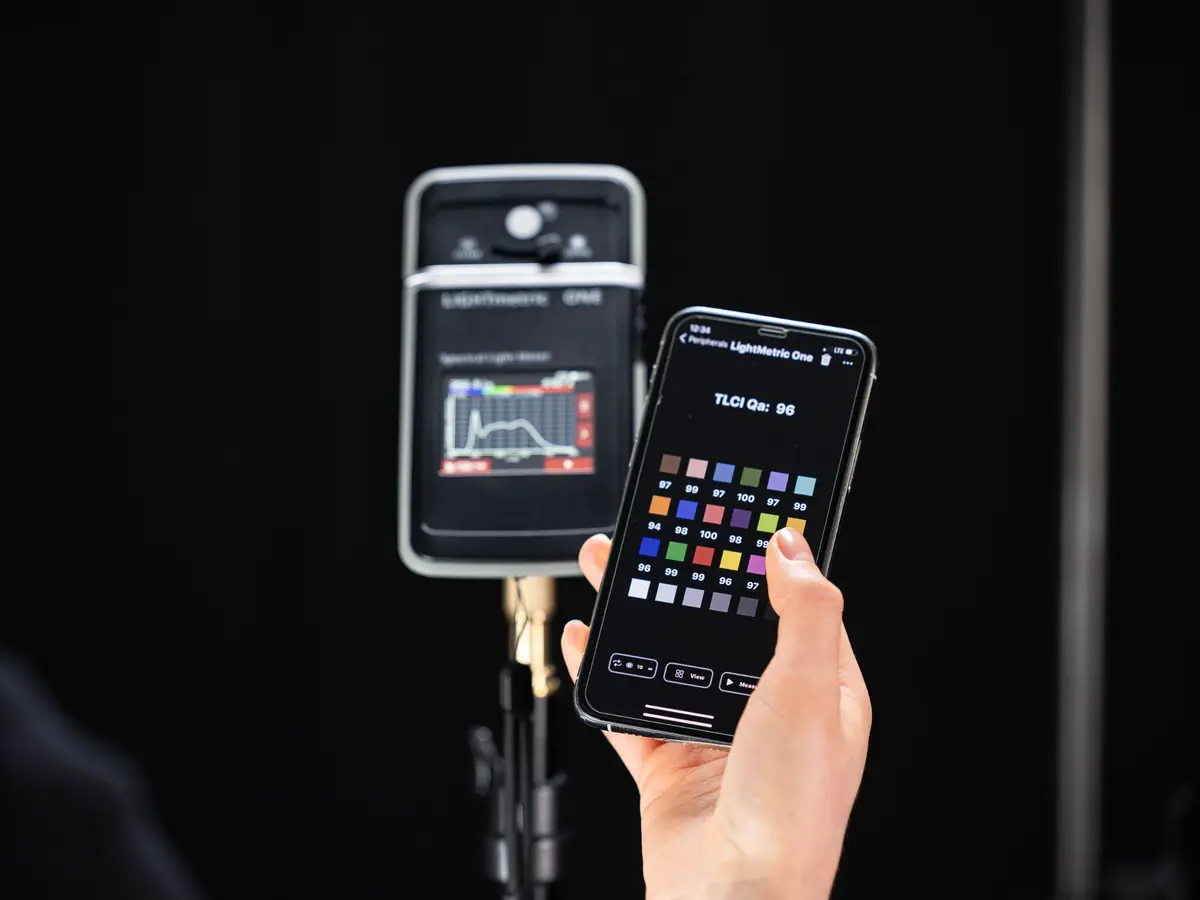

Controllable via app

Controlling the measuring device via app (iOS, Android) makes handling easier (triggering a measurement, sending data, etc.) and the user can see the measurement data directly on the smartphone.

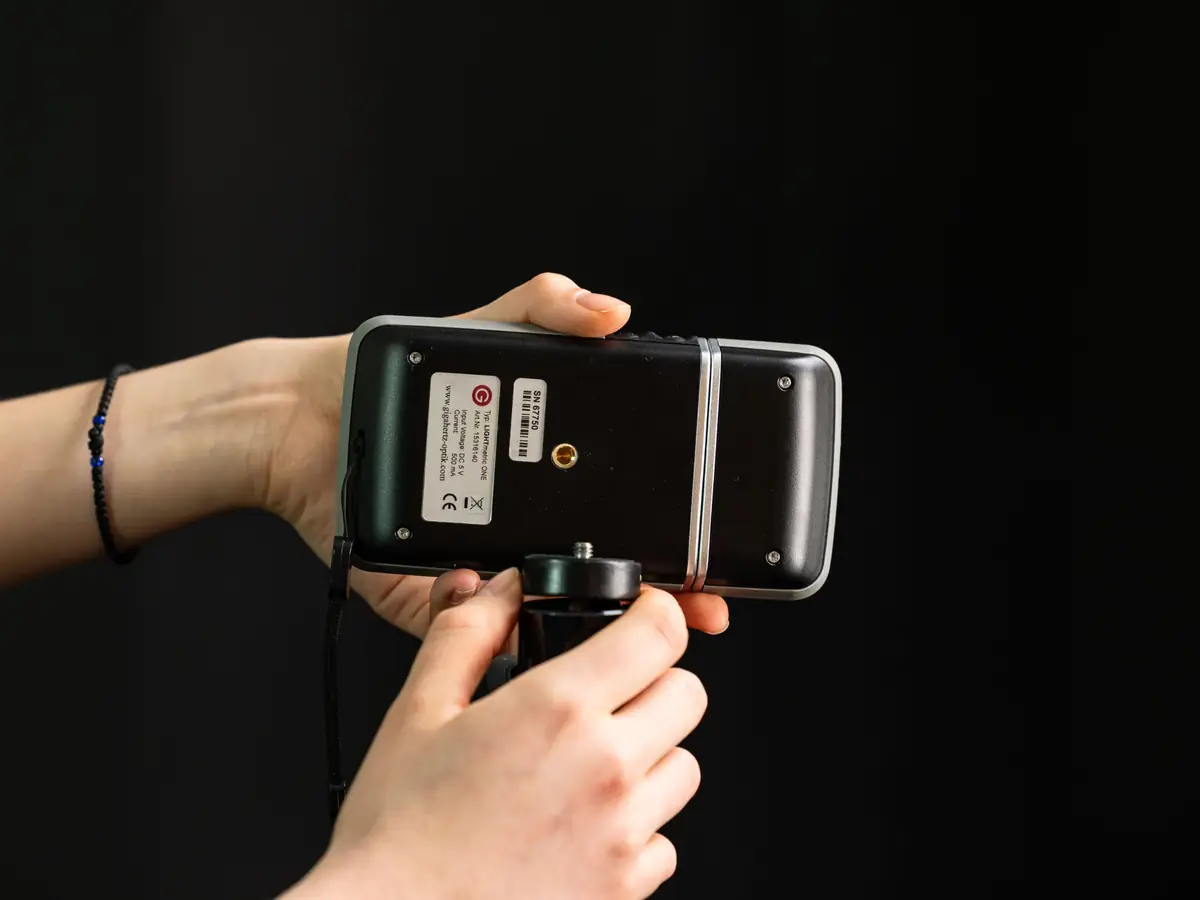

Tripod mount

There is a tripod attachment option on the back of the device

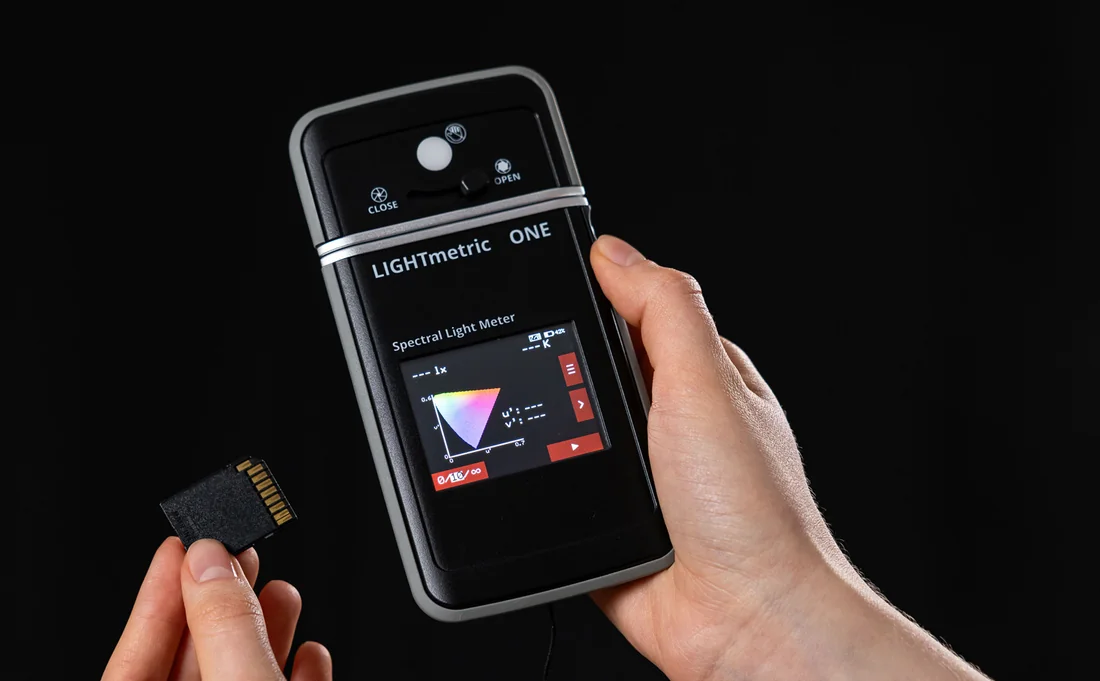

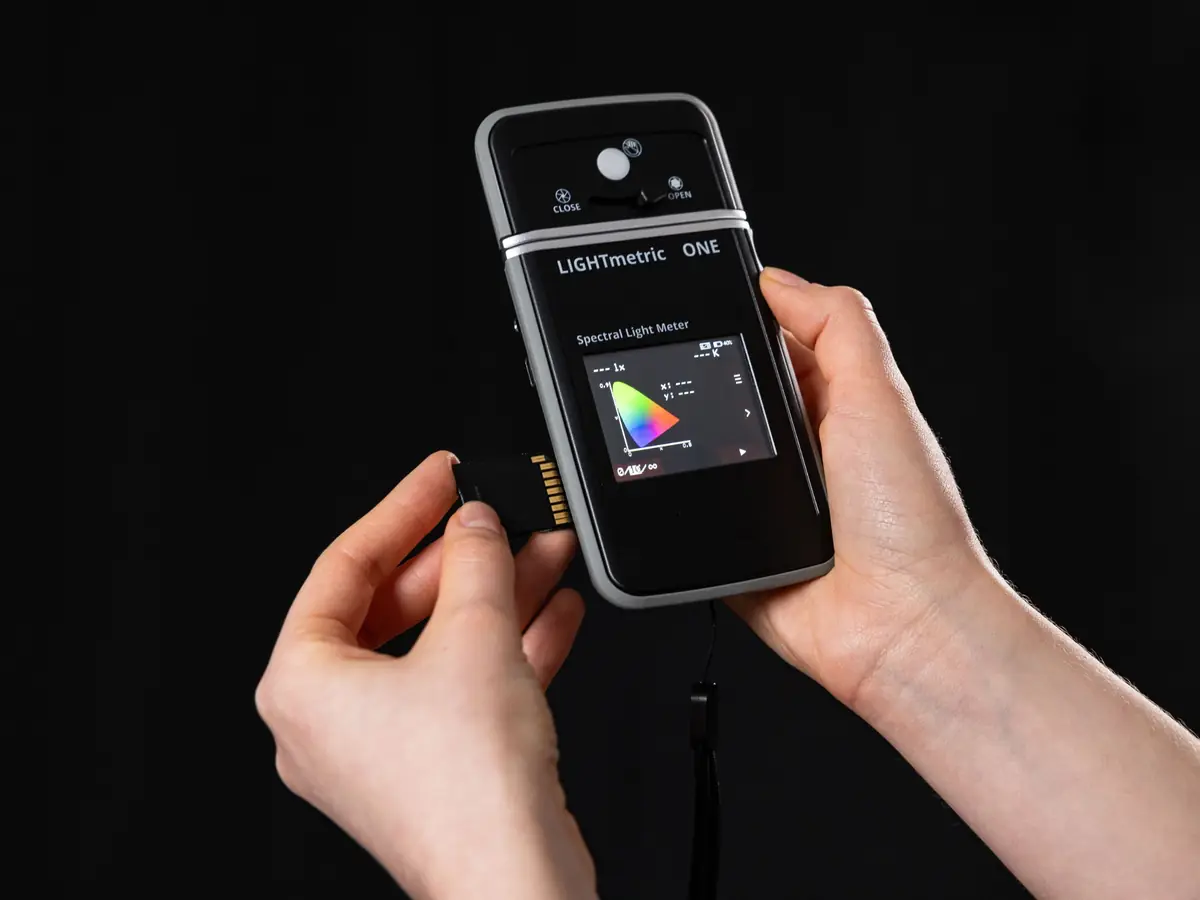

SD card port and Flash sync

The LIGHTmetric has a Flash Syncro port for synchronization with a flash unit or similar. An SD card slot is also available for data storage and data transfer if desired.

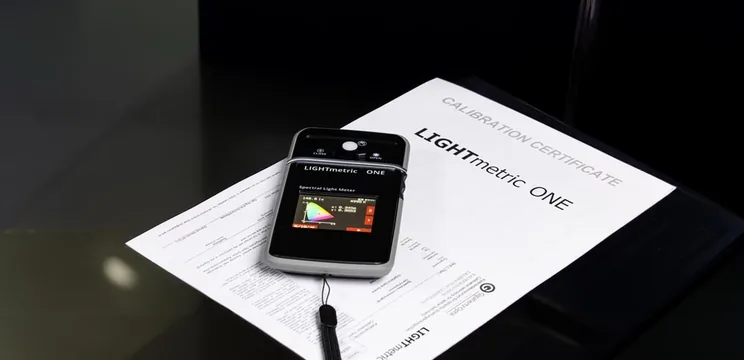

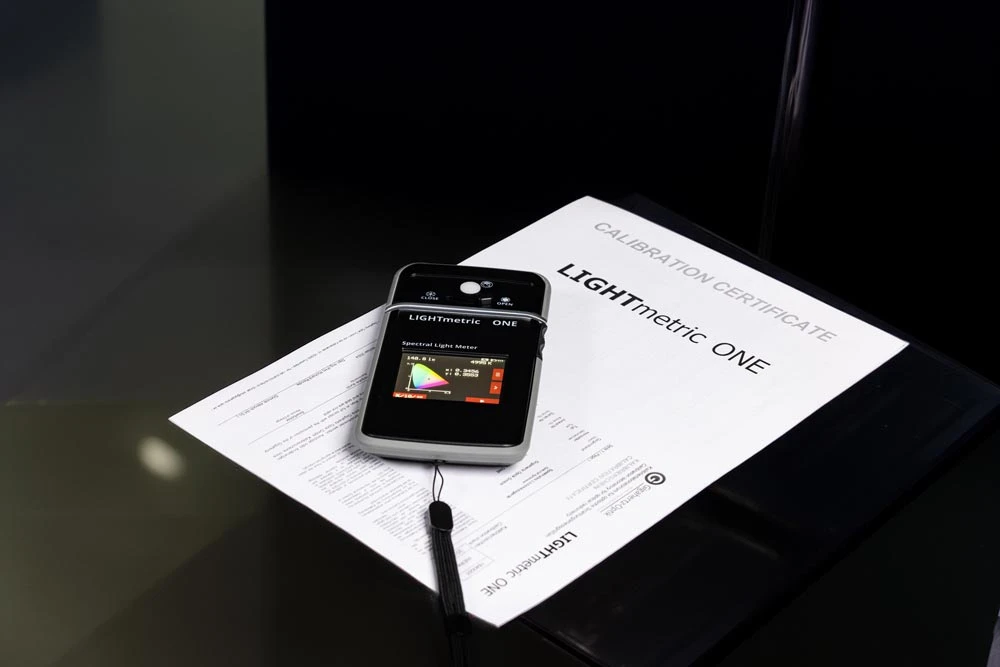

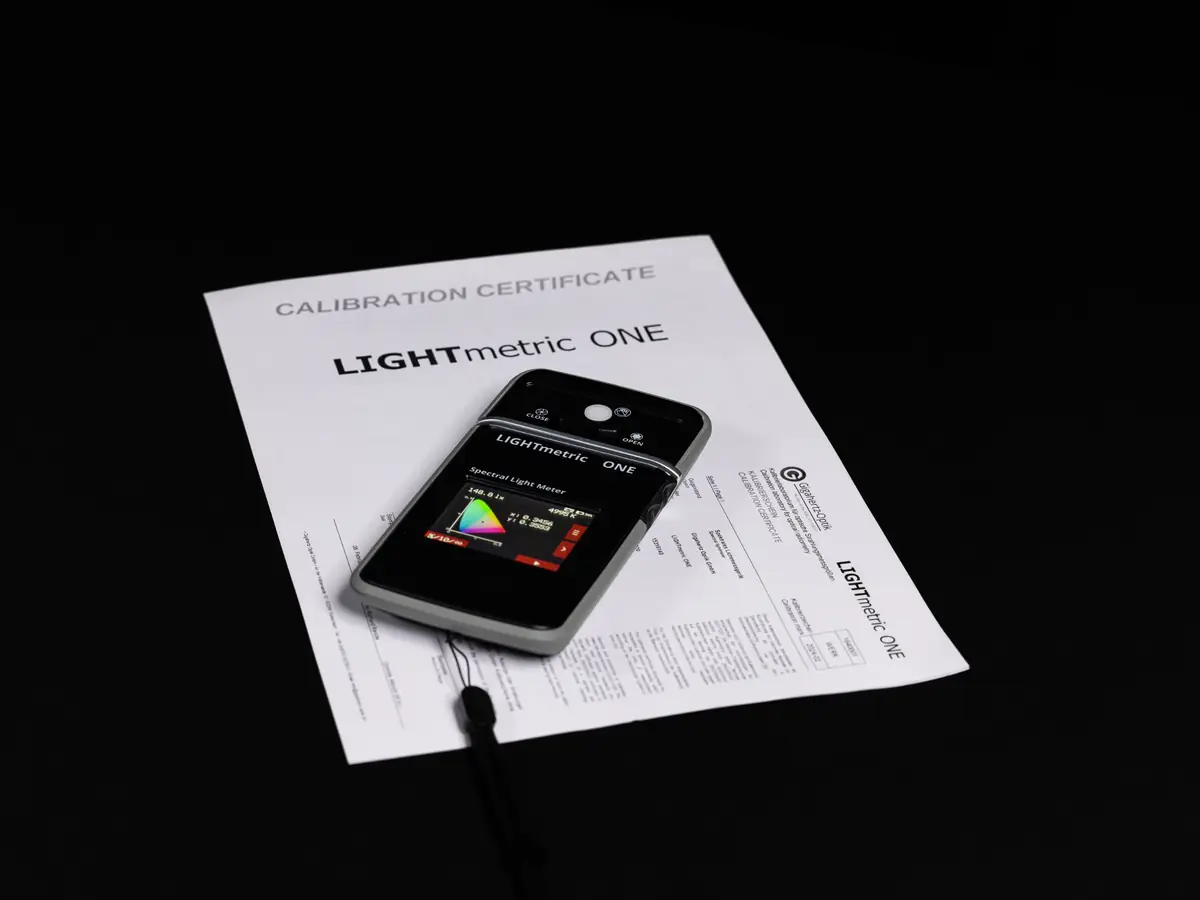

ISO17025 for highest precision

The LIGHTmetric ONE is ISO17025 traceable calibrated to ensure maximum precision and long-term stability and reproducibility.
